F14891 A DIY RC Multicopter FPV APM2.8 GPS Drone X4M310L Fiberglass Frame Kit 1400KV Motor XT XINTE 30A ESC Propeller

F14891 A DIY RC Multicopter FPV APM2.8 GPS Drone X4M310L Fiberglass Frame Kit 1400KV Motor XT XINTE 30A ESC Propeller
  • Продавецcsline.info
  • Список ценUS $97.64piece
  • Продажная ценаUS $97.64piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (808)

Oписание продукта











We accept OEM orders,if you have special request for the item or other items you need to produce,please feel free to contact us,we will try our best to give you best quotation and serves~~~



Full Kit DIY GPS Drone RC Fiberglass Frame Multicopter FPV APM2.8 1400KV Motor 20A ESC flysky 2.4GFS-i6 Transmitter



Specifications:

frame in light weight, the conventional FPV configuration as a whole take-off weight can be controlled at about 500 grams
general configuration 5"-10" propeller (Not inclued)
Personality Across Design
,Material:Carbon Fiber Frame kit

Frame reference:

Motor: MT2204 or MT2206 (Not included)

Propellers: (Not included)
2204 motor use FC 5"-6" blade
2206 motor use FC 5" 6" 8" blade
ESC: 15A-20A (Not included)
Voltage: 11.V-11.8V (Not included)
Weight about: 200g

Motor:
KV: 1400
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Phi27.5 x 30mm
Shaft Diameter: Phi3.17mm
Weight: 47g

ESC:
Features:
1.1 Rotor dedicated program, fast throttle response, beyond the various types of open source software;
1.2 Specifically optimized firmware disc motor, the motor has a very good compatibility;
1.3 Highly intelligent, adaptive ability, extremely easy to use;
1.4 Throttle signal line is a twisted pair, copper wire to reduce crosstalk signal generated within the transmission, so that more stable flight;
1.5 Supports up to 621Hz refresh rates up to the throttle signal, compatible with a variety of flight control (Note: More than 500Hz signal of the throttle throttle are all non-standard signal)
1.6 Use MOSFET special driver chip, performance and stability far beyond the driving circuit with discrete components built
1.7 Ultra-low resistance MOSFET, strong resistance to current capacity;
1.8 Exquisite plastic case back with high brightness LED navigation lights
1.9 Power transfer comes on the back of the micro DIP switch for setting LED navigation lights on / off, LED light color, into the steering angle and the motor.

Transmitter Specfications:
Channels: 6
Model type: fixed-wing/glider/helicopter
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band: 142
RF power: less than 20dBm
2.4G system: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC port: PS2; output: PPM
Charger port: no
ANT length: 26mm * 2(dual antenna)
Power: 6V 1.5AA * 4 (Not included)
Display mode: Transflective STN positive type,
128 * 64 dot matrix VA72 * 39mm, white backlight.
Size:174 * 89 * 190mm
Weight: 392g
Online update: yes
Color: black

Receiver Specifications:
Channels: 6 Channels
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4--2.48GHZ
Band width number: 140
Transmitting power: not moer than 20dBm
RX sensitivity: -105dBm
2.4G system: AFHDS 2A
Code type: GFSK
Antenna length: 26mm
Input power: 4.0-6.5V DC
Dimension: 40 * 21 * 7mm
Weight: 6.4g
Color: Black
i-Bus interface: No
Data acquisition interface: No
Package information:
Package size: 23 * 21 * 10.5cm / 9.1 * 8.3 * 4.1in
Package weight: 680g / 1.5lb

Package listing:

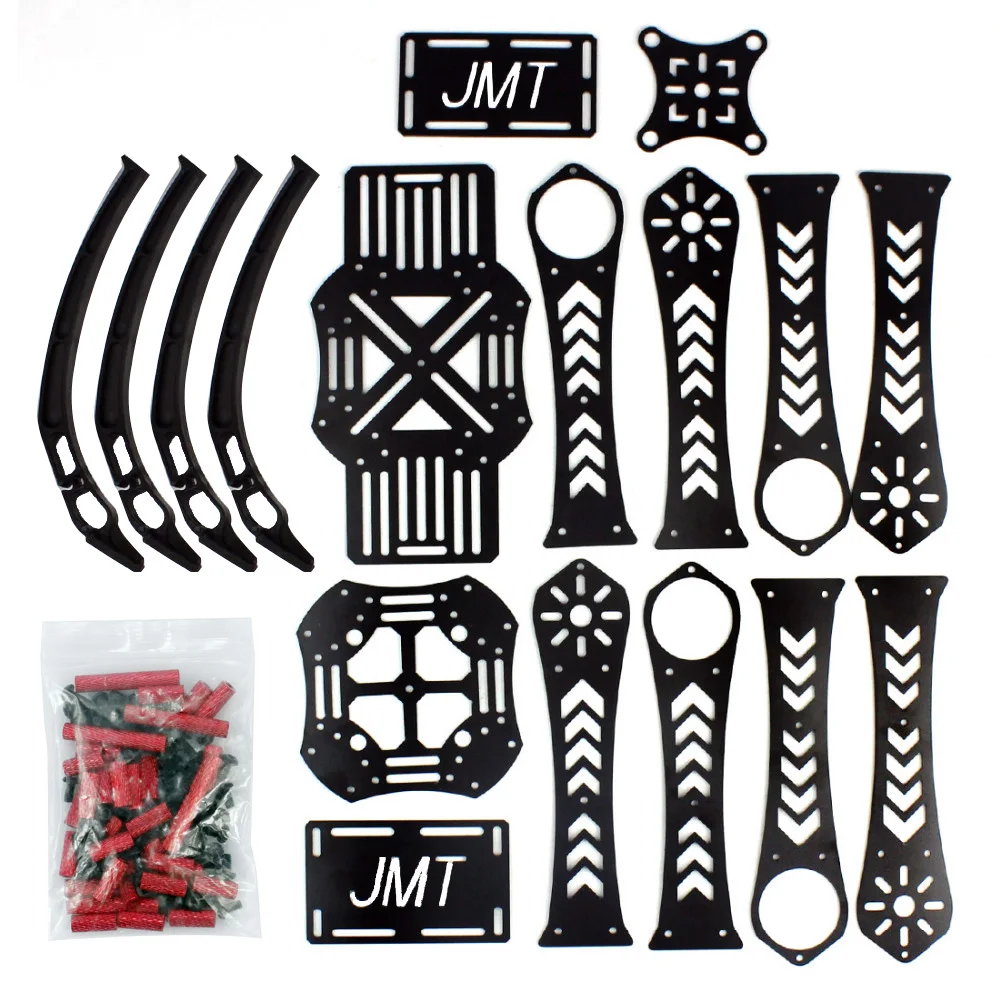

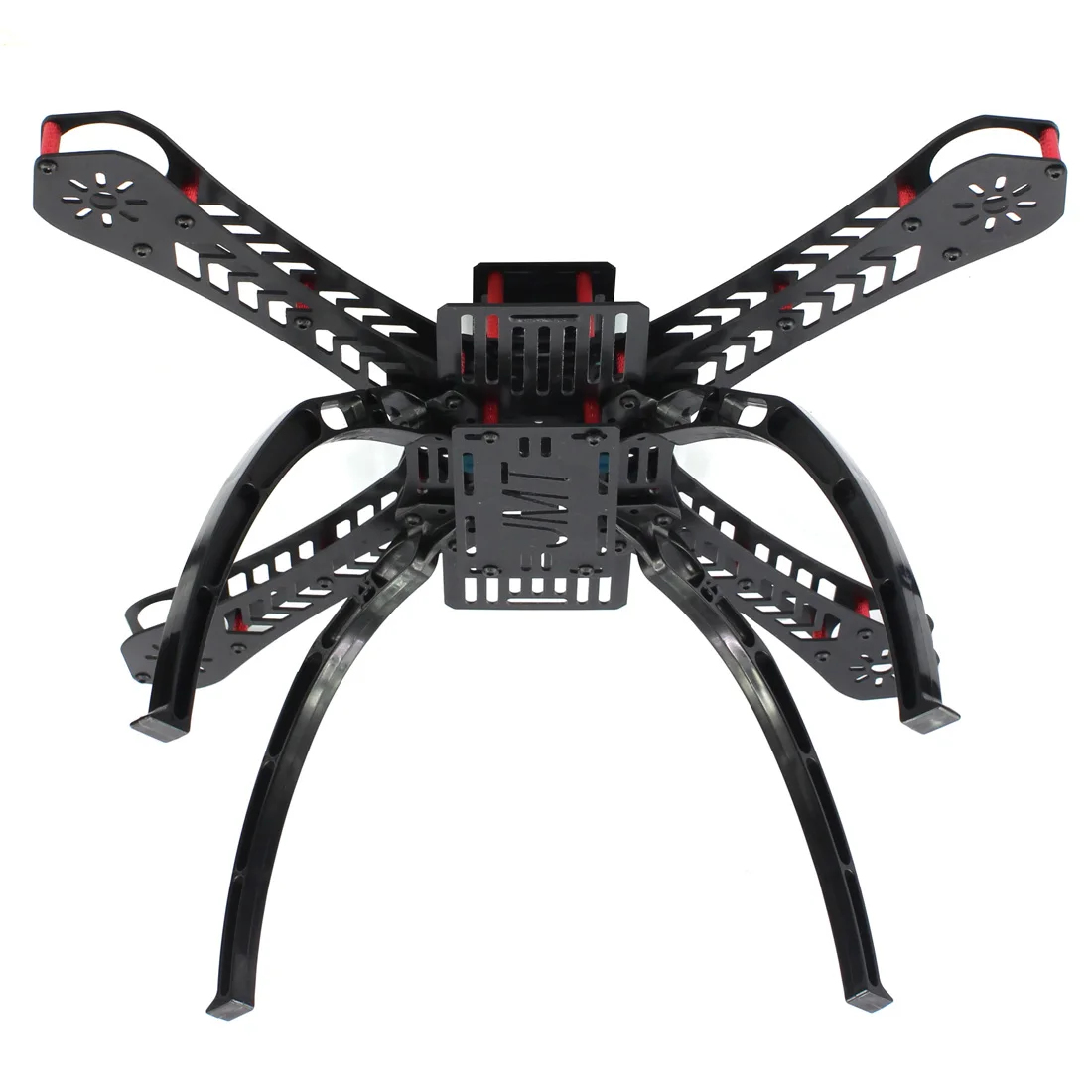

1* Fiberglass Alien Across Mini Quadcopter DIY Frame Kit

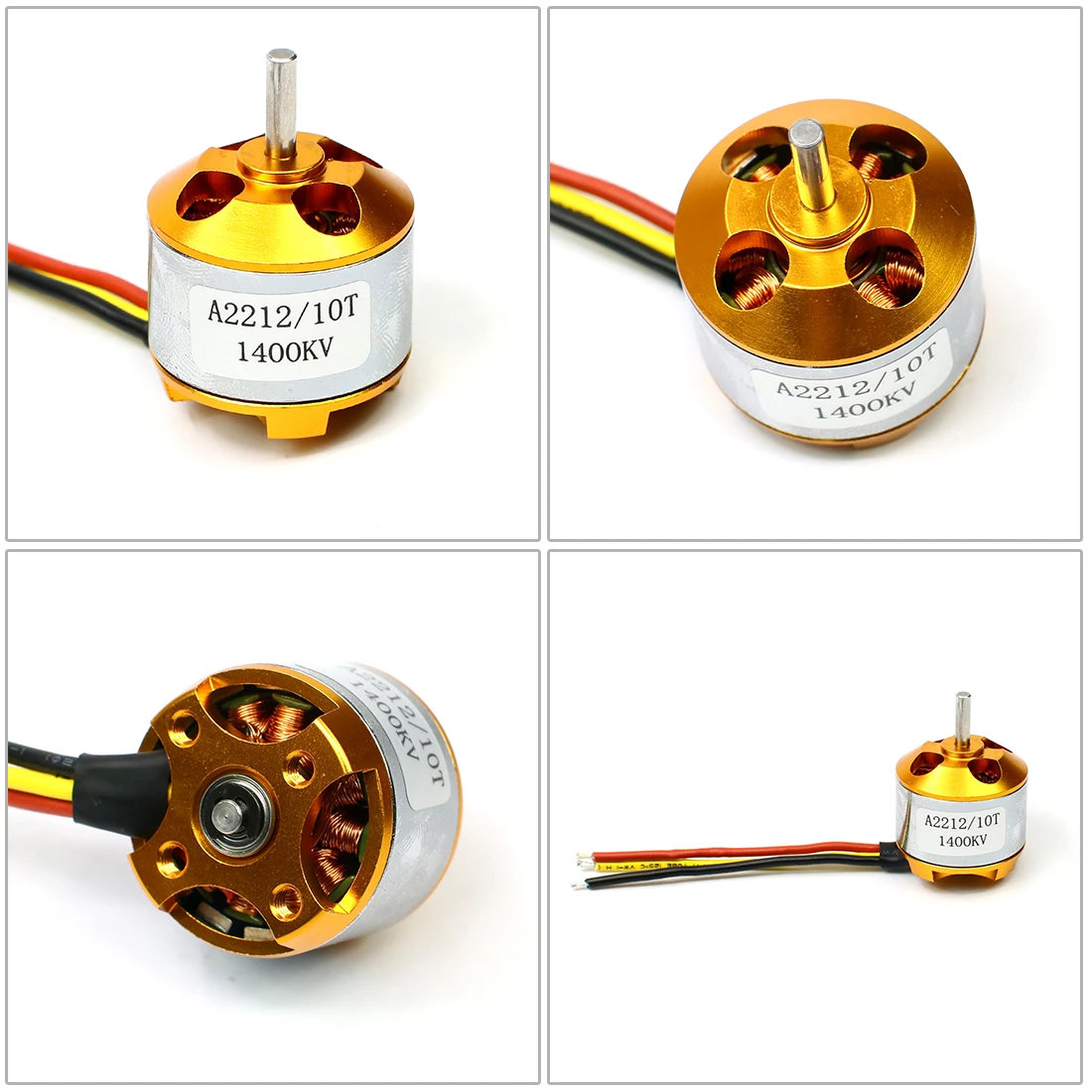

4* A2212 1400KV Brushless Outrunner Motor

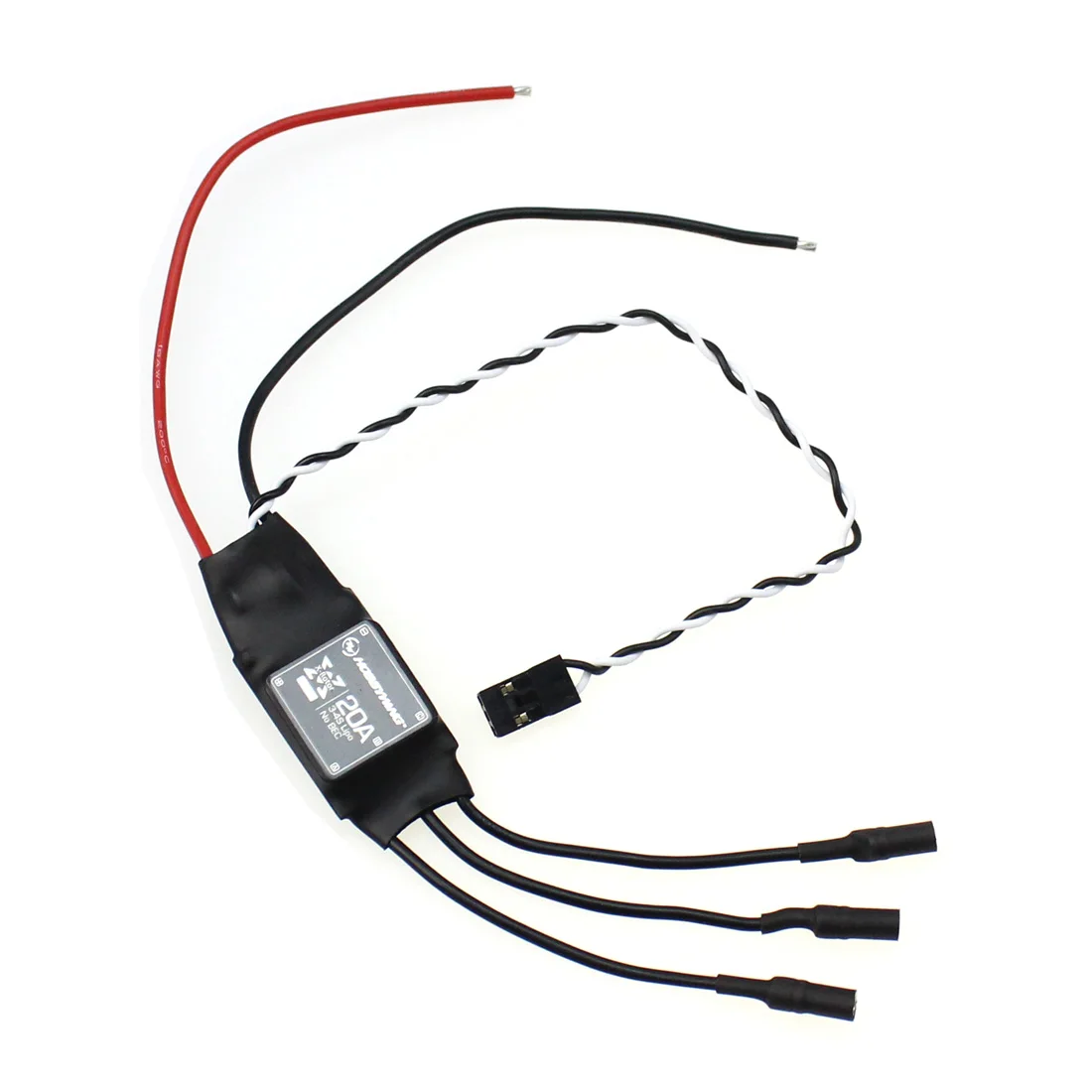

4* Hobbywing XRotor Lipo 3-4S Long wire 20A Brushless ESC

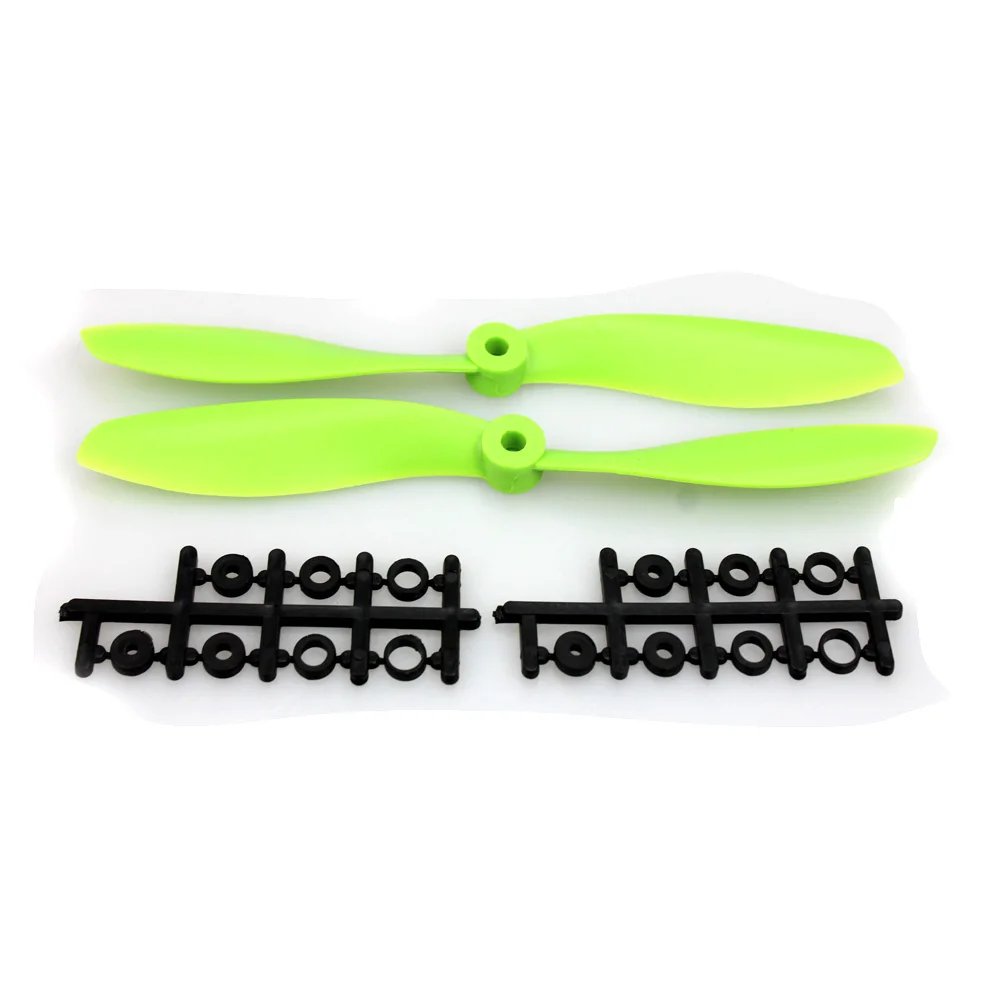

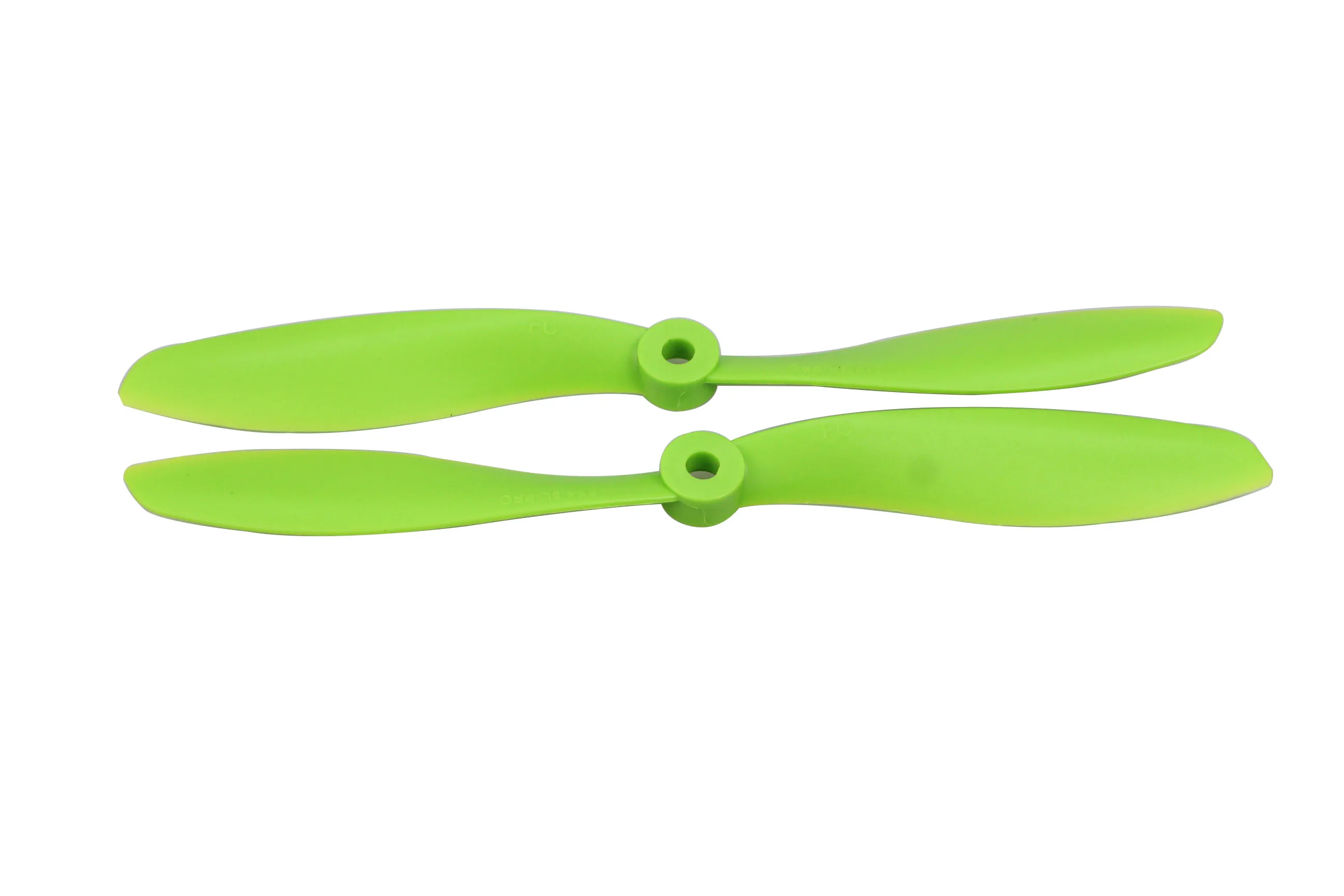

2* 8045 propeller (pair)
The color of the propeller will ship out according to our inventory,if you have request for it,please leave message in the order or confirm with us before purchase,thanks

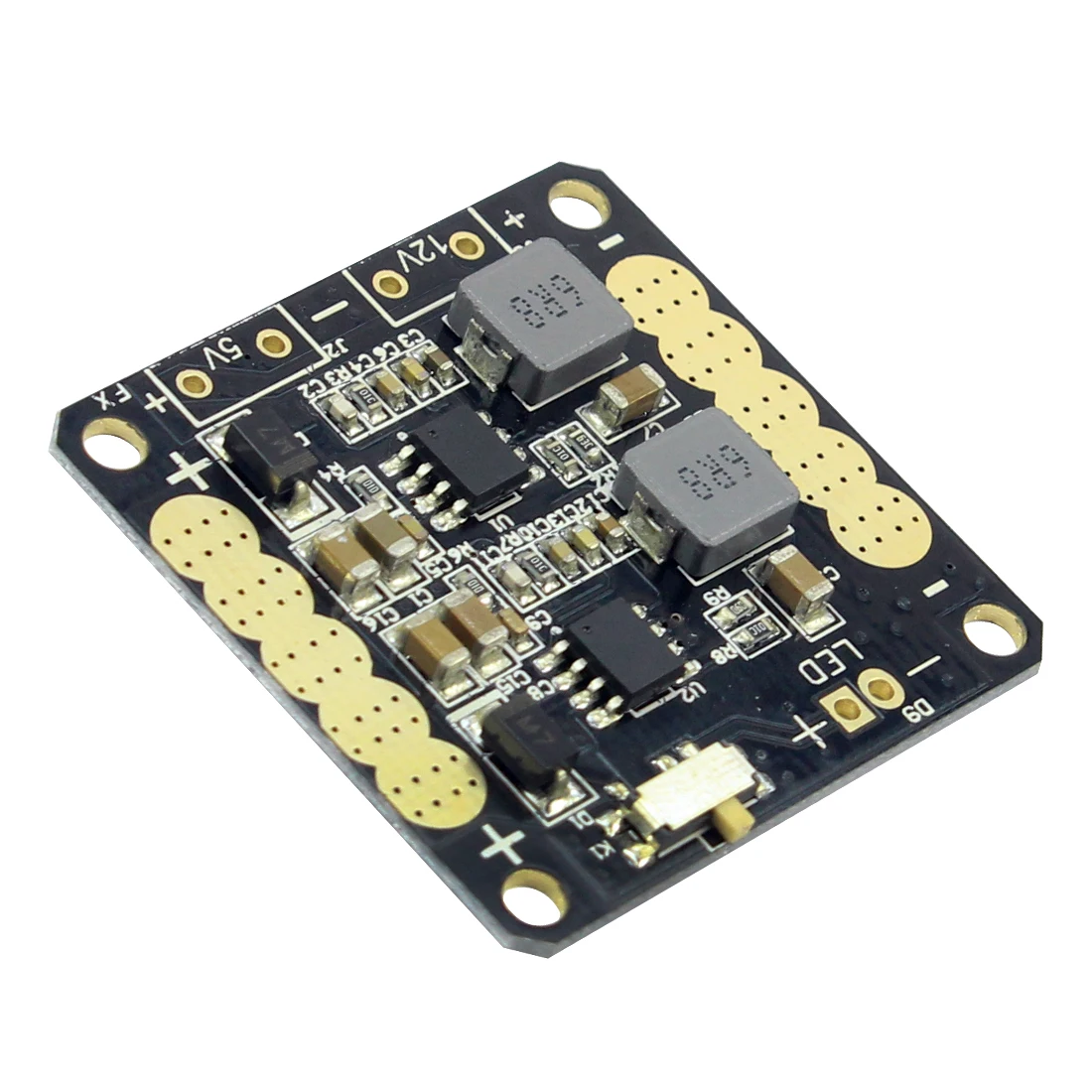

1* CC3D Flight Controller Power Distribution Board

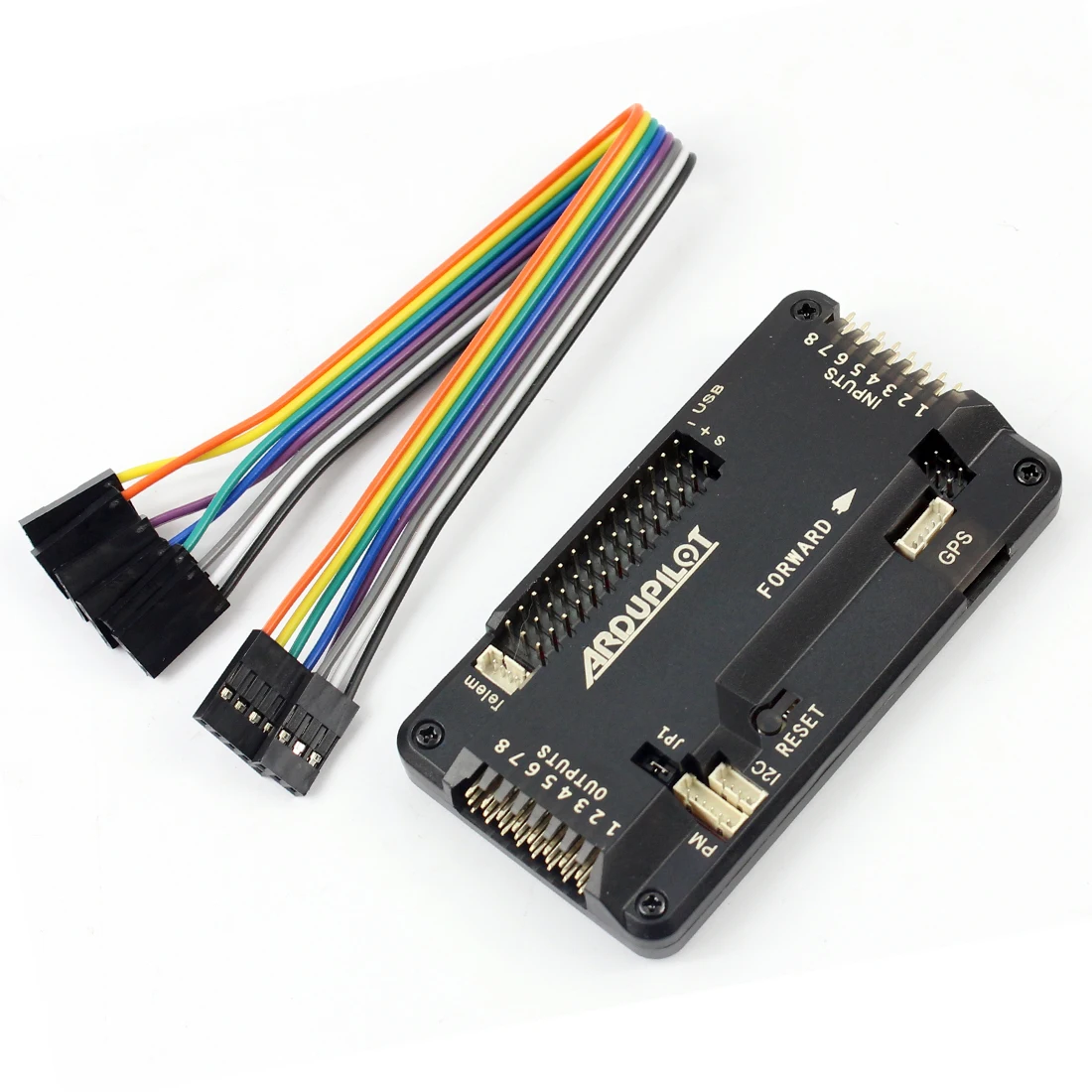

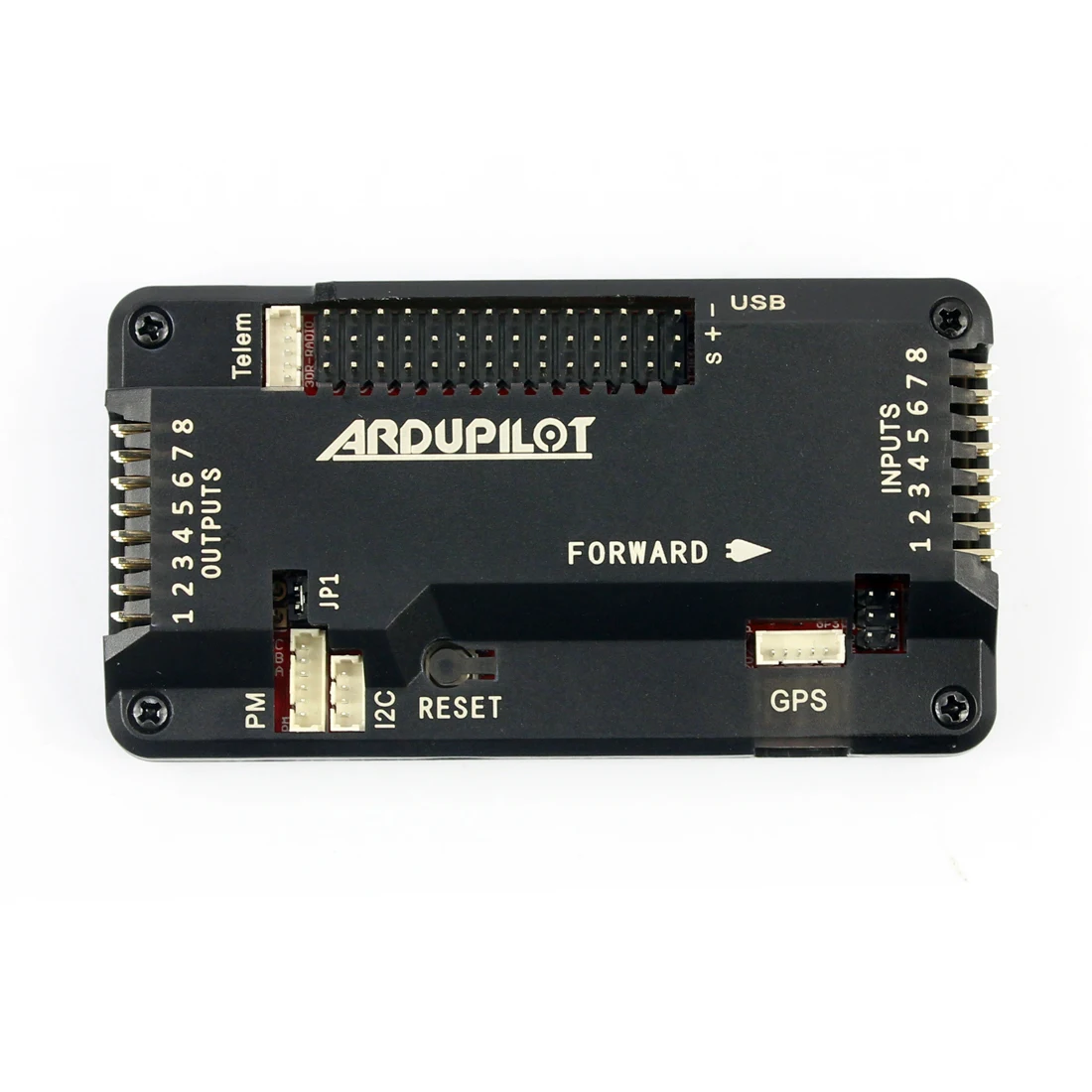

1*APM2.8 APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded Built-in Compass
1* 6M GPS with Compass L5883 25cm Cable

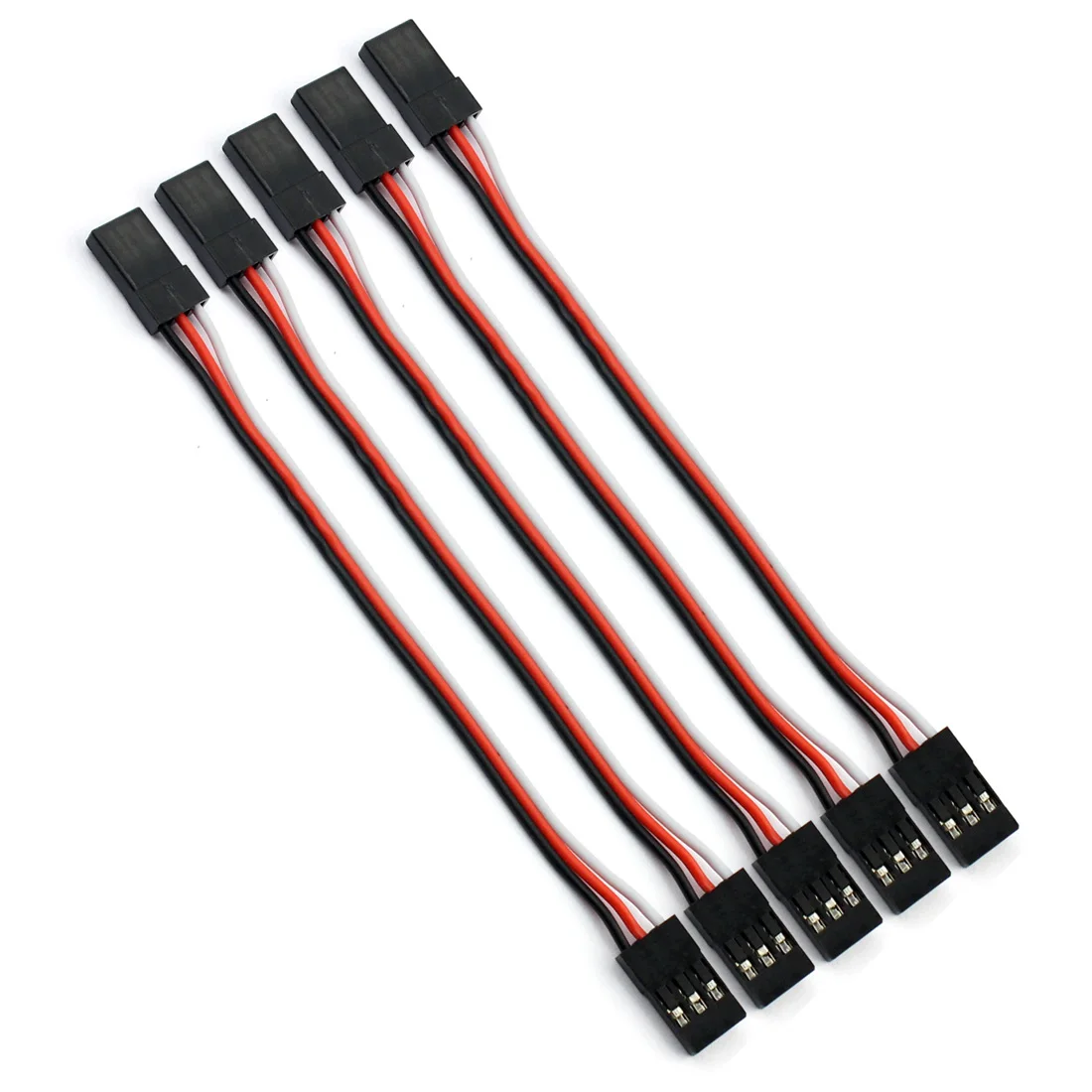

5* 10cm Servo Extension Lead Wire Cable MALE TO MALE
1* GPS Folding Antenna Mount Holder

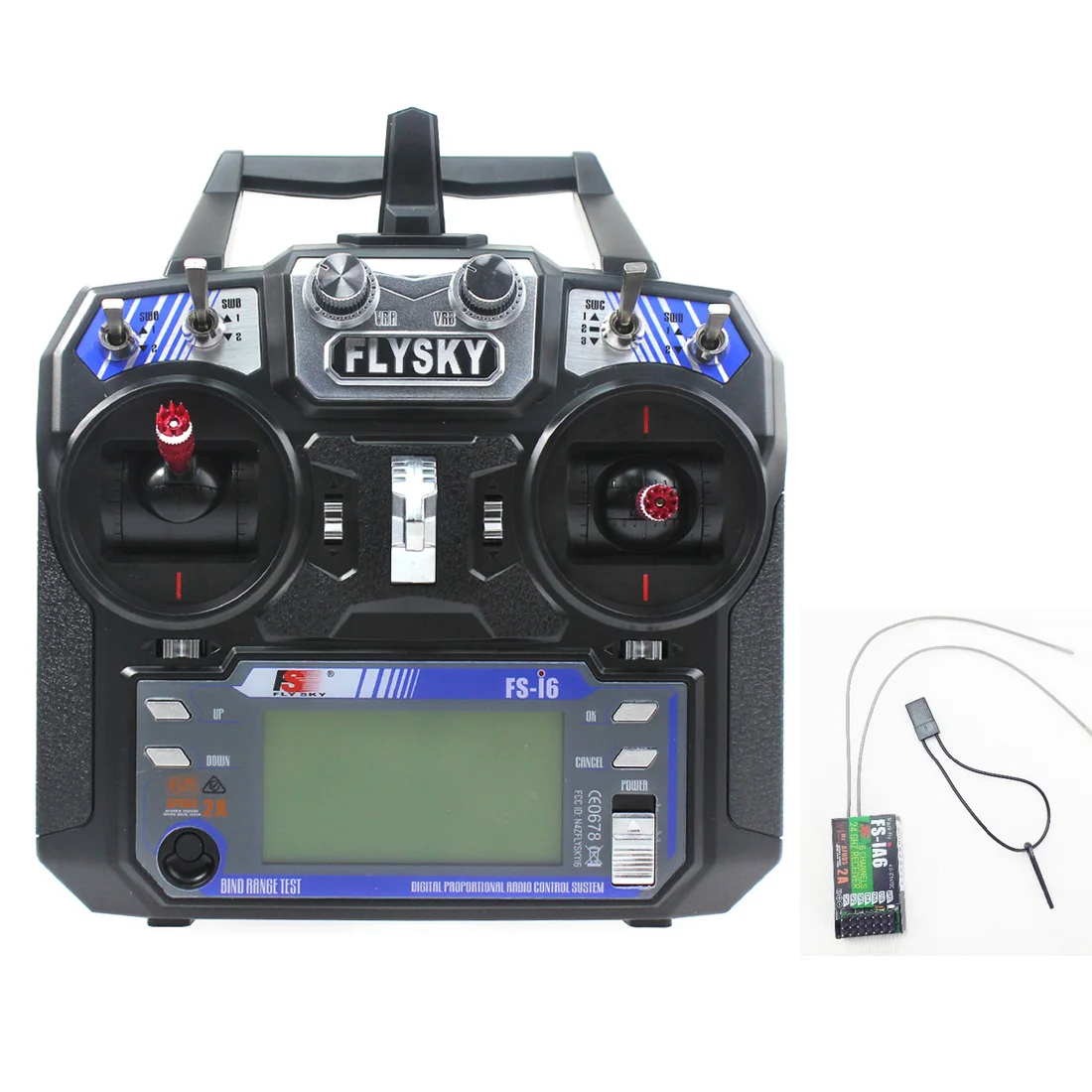

1* Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter iA6 Receiver

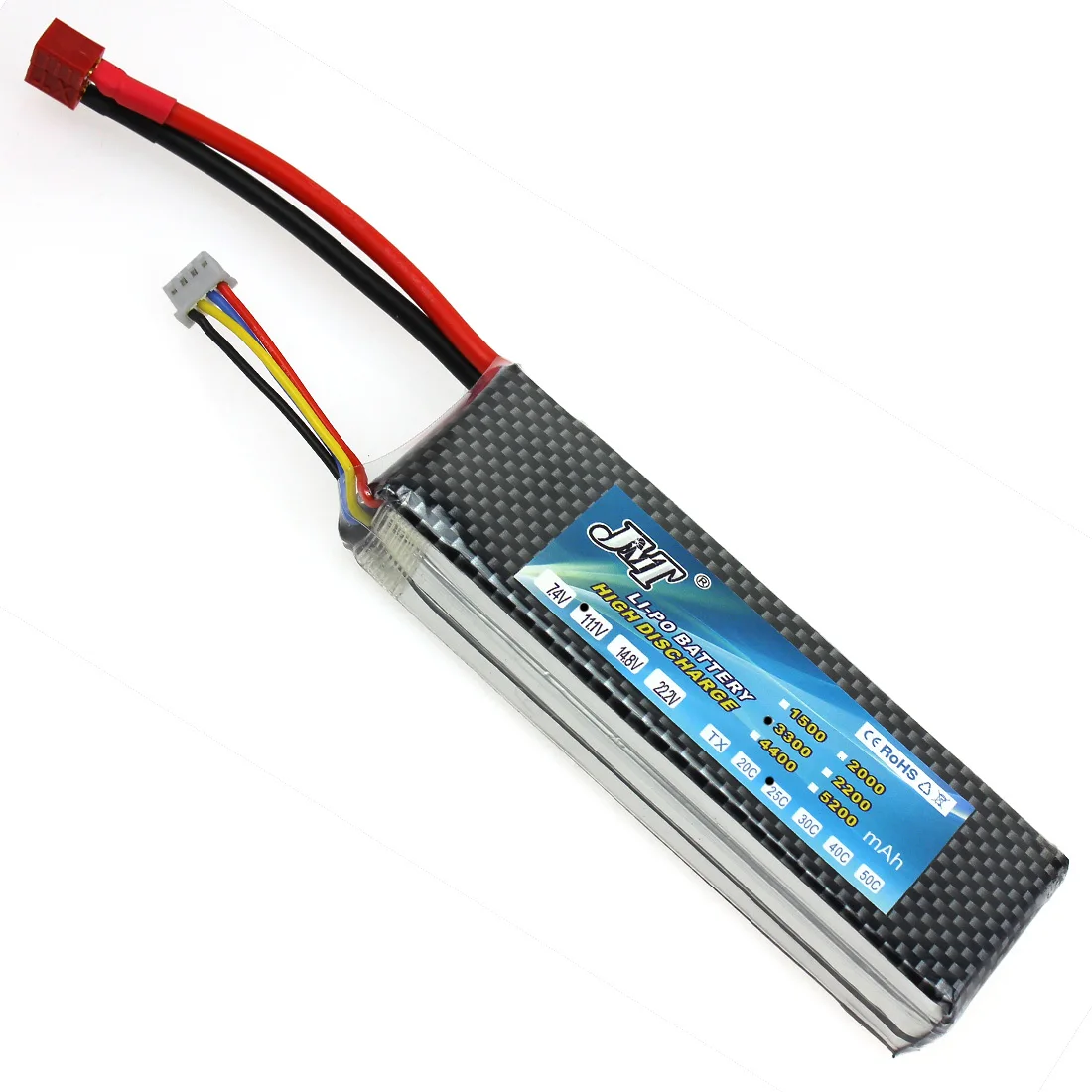

1* 11.1V 3300Mah 25C Quad aircraft with 3S lithium battery

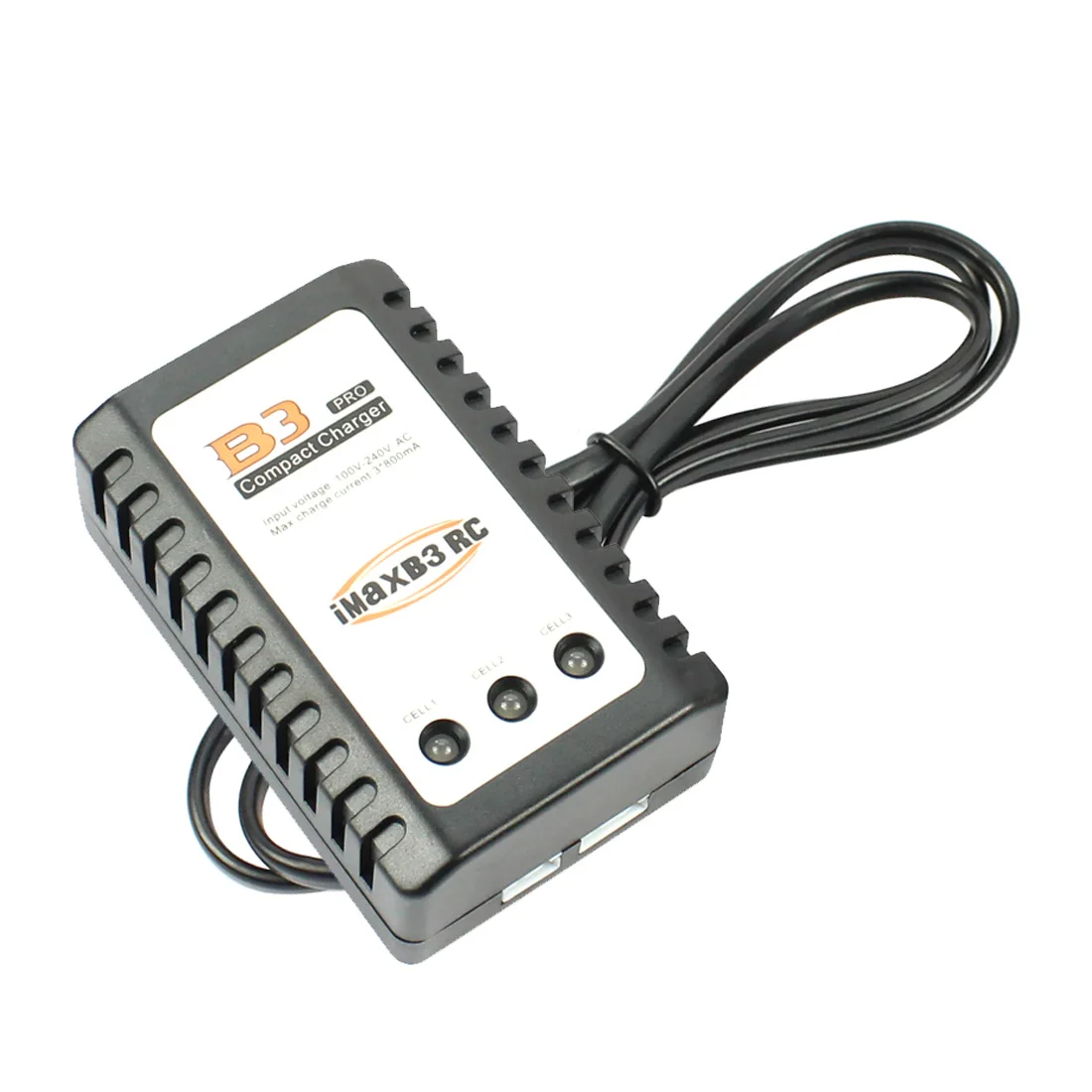

1* IMAX RC B3 Pro Compact Balance Charger
1* Tool kit
F14891-B
